Plate heat exchanger cooler cools hot water came from induction heating machine to circulate the water. It’s good for environmental protection. TY Induction’s plate heat exchanger cooler is widely used in industrial application such as the cooling of production line in manufacturing plants takes away heat. The control of TY Induction’s plate heat exchanger cooler can be integrated with main control system, and with flow meter and temperature sensor to detect water temperature and water flow.
Photos

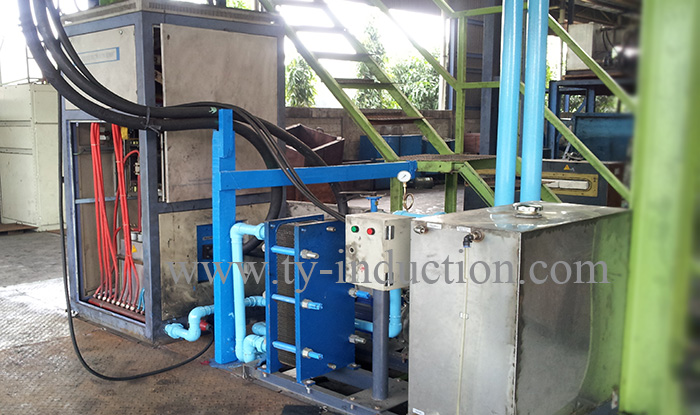

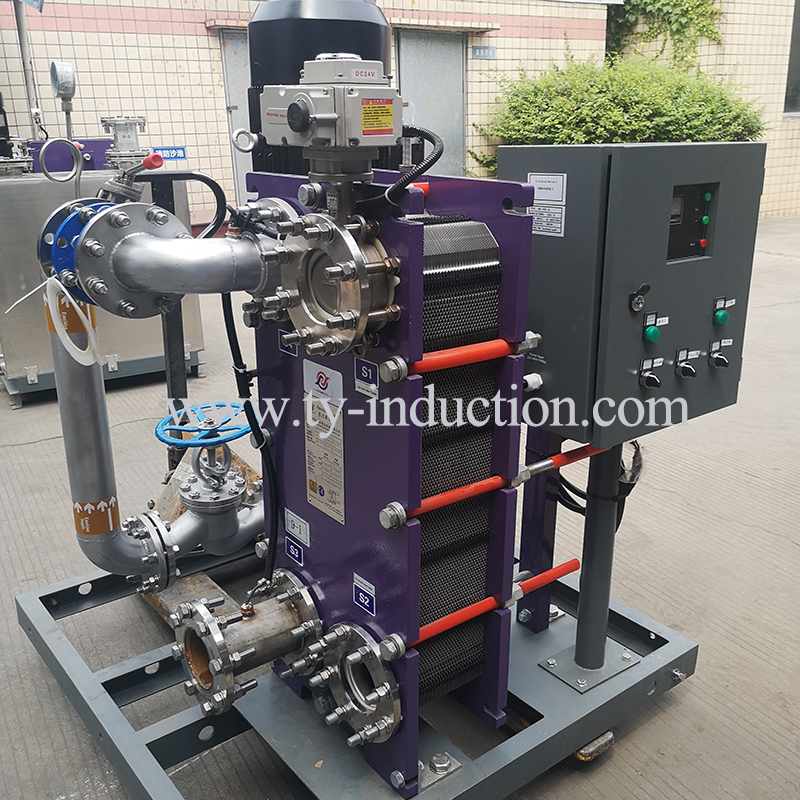

Plate Heat Exchanger for Induction Heater

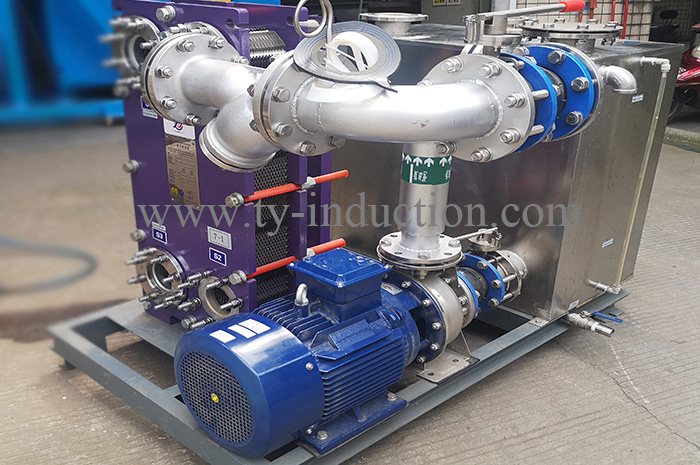

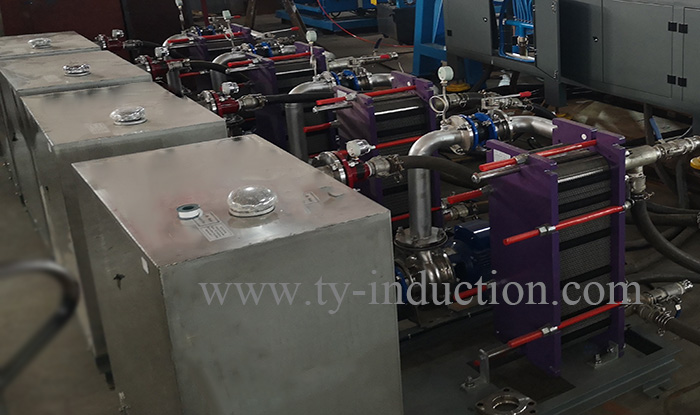

Plate Heat Exchanger for Induction Heating System

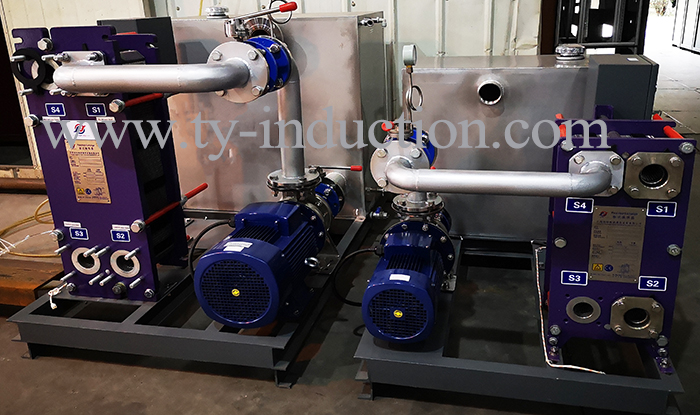

Plate Heat Exchanger for Induction Converter

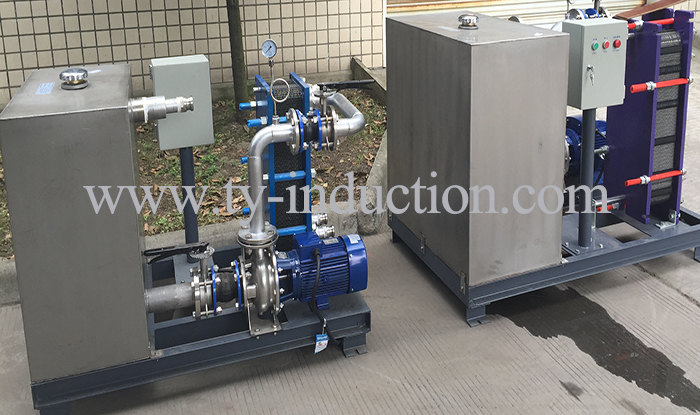

Plate Heat Exchanger for Induction Installation
Secification
| Model | BKL-250-4.0 | BKL-400-7.5 |
| Cooling capacity | 51600Kcal/h | 155000 Kcal/h |
| Water flow | 9-18 m3 /h | 20-42 m3 /h |
| Power of water pump | 4.0KW | 7.5KW |
| Water capacity of tank | 250L | 400L |
| Outside diameter of outlet cooling water | DN40（Quick coupler） | DN65（Flange） |
| Dimension | 1300× 870× 930 (mm) | 1550× 1000× 1050 (mm) |
| Noise | ≤70 dB(A) | ≤70 dB(A) |
| Ambient temperature | 8～40℃ | 8～40℃ |
Similar Cases

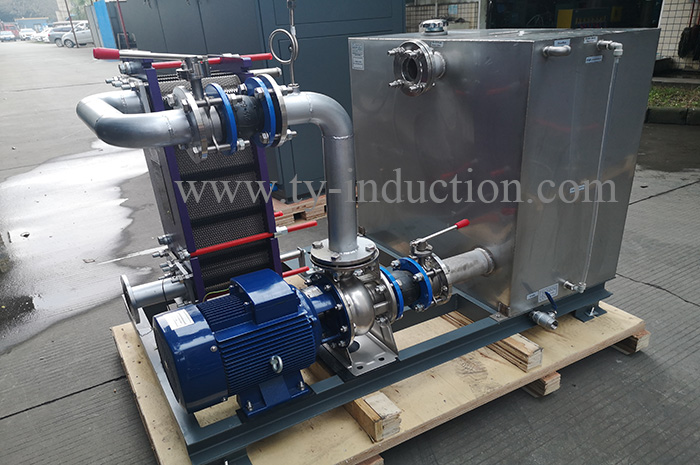

Plate Heat Exchanger for Induction Heater

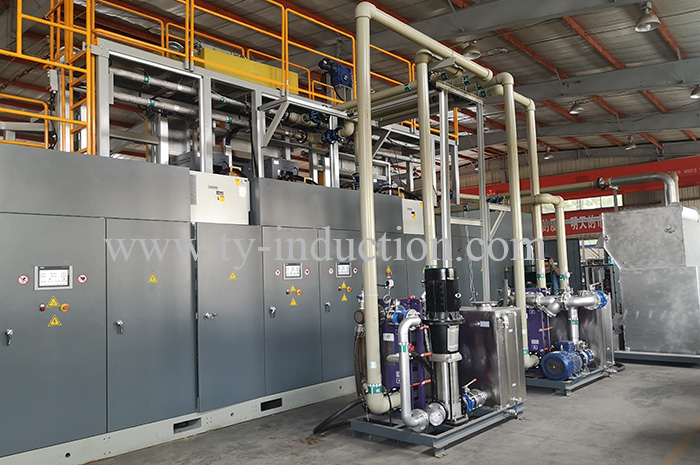

Plate Heat Exchanger for Induction System

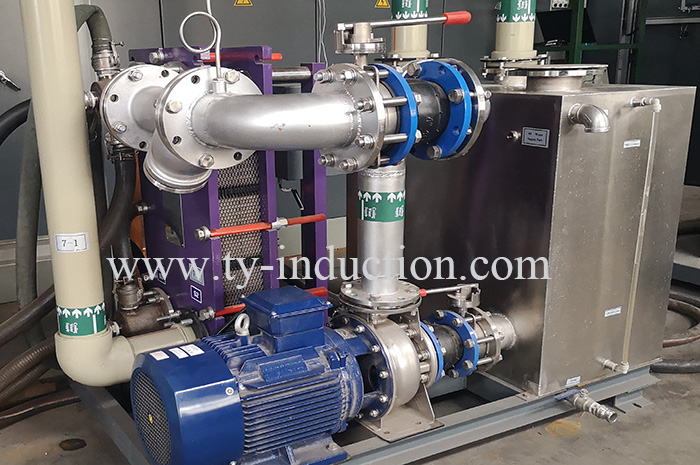

Plate Heat Exchanger for Induction Machine

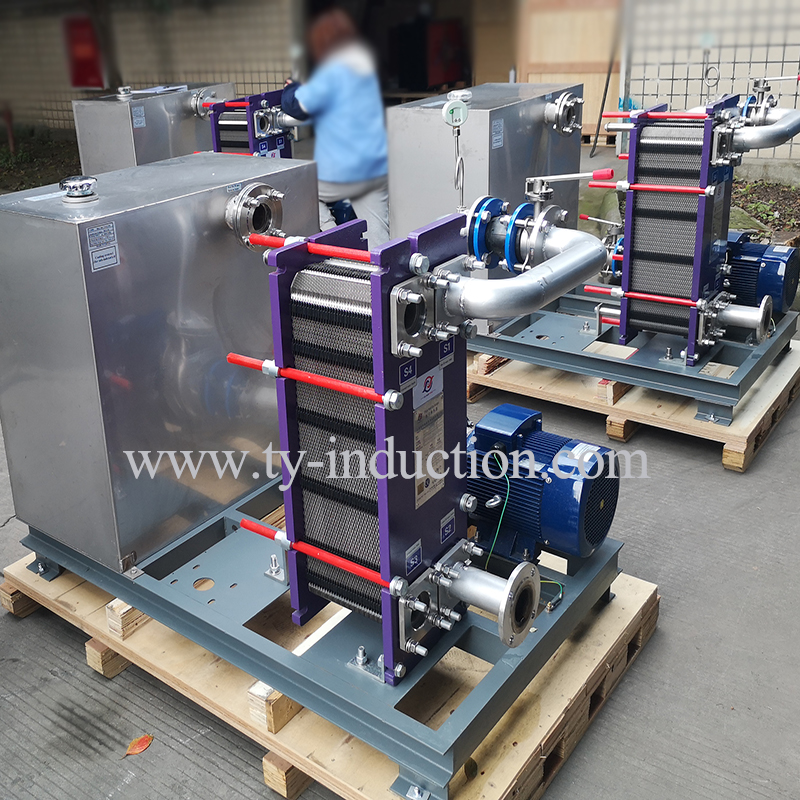

Plate Heat Exchanger for Induction Equipment
Features
● Detection of water Pressure and water Temperature to ensure the reliability.
● Water tank is made of stainless steel 304
● Stainless steel water pump to prevent the scale formation, ensure good cooling result, and greatly reduce the failure rate
● The stainless-steel pipeline and fitting are connected by argon arc welding, without oxide scale, to ensure the system runs clean for a long time.
● The thickness of the pipe wall is 4mm, high strength, corrosion resistance, and no leakage. It can also be coated with an anticorrosive coating.
● Small space required, easy to install.
● Operation is simple and reliable.
● Low cost and high efficiency
