TY Induction Heat Treating Scanner is a special machine tools for the quenching process using induction heating power sources. It has the advantages of high precision, good reliability, time-saving and labor-saving.
TY Induction Hardening Scanner is a flexible and versatile induction heat treating scanner that can be configured to perform a variety of heat-treating processes such as hardening, quenching, tempering, and normalizing. It can be configured to operate as a single or dual spindle unit and can accommodate a wide range of part sizes and weights. There are two types of induction heat treating scanner: vertical and horizontal in structure.

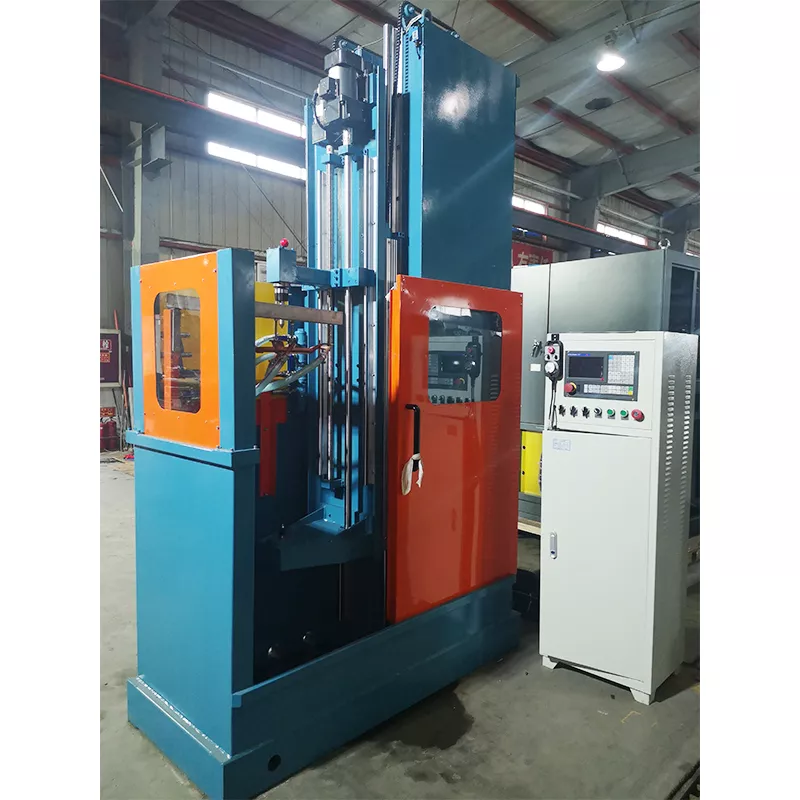

TY Induction Heat Treatment Scanning Machine is mainly composed of bed, sliding table, clamping and rotating mechanism, cooling system, quenching liquid circulation system, electrical control system (CNC), etc. For special parts or special processes, special induction heat treatment scanner can be designed and manufactured according to the heating process requirements.
Photos
Photos
Photos
Photos
Photos
Secification
TY Induction Heat Treatment Scanner is mainly used for following quenching types:
• External quenching: the external surface of various shafts, rods, tubes and circular parts (such as bearings, valves, etc.) is quenched as a whole or partially.
• Inner circle quenching: quench the inner circle of all kinds of pipes and mechanical parts as a whole or partially, such as cylinder liners, shaft sleeves, etc.
• End face and plane quenching: perform overall or partial quenching on the end face and plane part of mechanical parts.
• Special-shaped parts quenching: perform overall or partial quenching on a certain surface of special-shaped parts.
• Extra-large parts quenching: perform overall or partial quenching of large and heavy parts, such as marine gears, dam water gate rails, large oil pipelines, etc.
Similar Cases
Features
• Perform various heat-treating operations such as scanning and single-shot
• Increased throughput – Short heat times
• Vertical scanning system with single or dual spindle

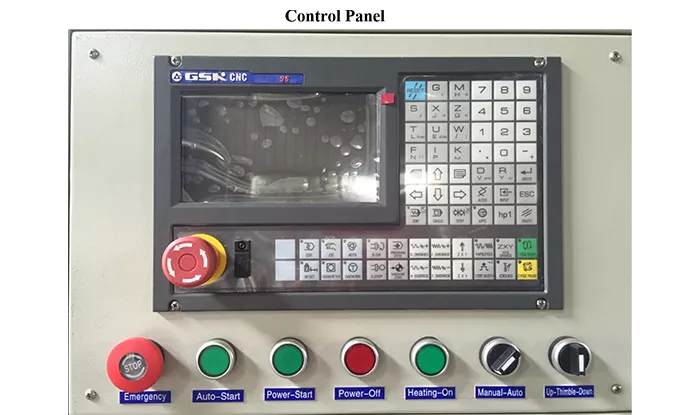

• User friendly controls simplify set-up, changeover and trouble-shooting

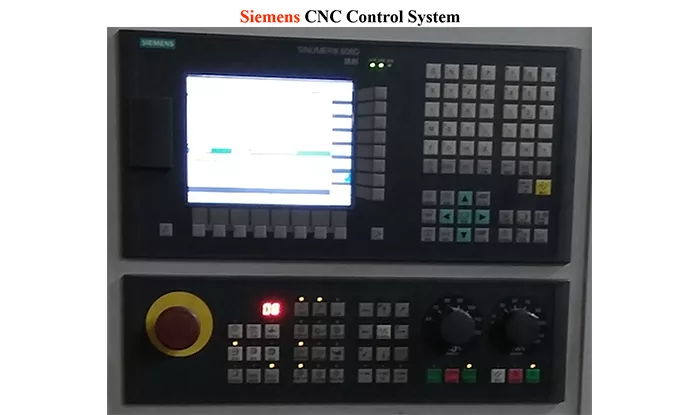

• Precise control by CNC of scanning and rotation speed for repeatable results
• Manual and automated program settings with multiple pre-programmed recipes

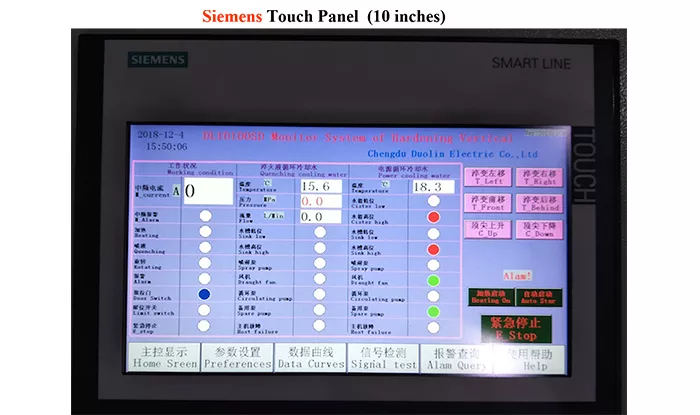

• User-friendly touch panel interface loaded with process monitoring and diagnostics features
• Easy load/unload and part centering system for manual part loading
• Energy-efficient power supply unit (>95%), saves on energy cost
• Easy to service and maintain
